PI5C3308

Above which the useful life may be impaired. For user guidelines, not tested.

Storage Temperature .......................................................... 65°C to +150°C
Ambient Temperature with Power Applied ..........................40°C to +85°C
Supply Voltage to Ground Potential (Inputs & Vcc Only) ......... 0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) ..... 0.5V to +7.0V
DC Input Voltage ................................................................... 0.5V to +7.0V
DC Output Current ............................................................................ 120mA
Power Dissipation ................................................................................. 0.5W

Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

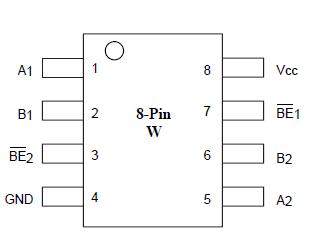

Pericom Semiconductor's PI5C series of logic circuits are produced using the Company's advanced submicron CMOS technology, achieving industry leading speed grades.The PI5C3308 is a 2-bit digital switch designed with a fast enable. When enabled via the associated Bus Enable (BE) pin, the "A" pin is directly connected to the "B" pin. The bus switch introduces no additional propagation delay or additional ground bounce noise.

The PI5C3308 device has an active LOW enable.
