PI5C3303

Features:

• Near-Zero propagation delay
• 5 switches connect inputs to outputs
• Direct bus connection when switches are ON
• Ultra Low Quiescent Power (0.1A Typical) Ideally suited for notebook applications
• Packaging (Pb-free & Green available): 6-pin plastic S0T-23 (T)

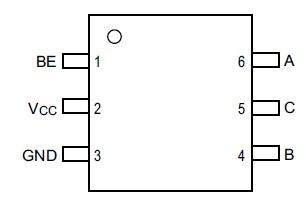

Pinout






Specifications

Above which the useful life may be impaired. For user guidelines, not tested.

Storage Temperature ..........................................................65°C to +150°C
Ambient Temperature with Power Applied .........................40°C to +85°C
Supply Voltage to Ground Potential......................................0.5V to +7.0V
DC Input Voltage ..................................................................0.5V to +7.0V
DC Output Current.............................................................................120mA
Power Dissipation .................................................................................0.5W

Note: Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Description

Pericom Semiconductor's PI5C3303 is a single 2:1 Mux/DeMux digital switch designed with a fast enable. When enabled using the Bus Enable (BE) pin, the "A" or "B" pin is directly connected to the "C" pin. The bus switch introduces no additional propagation delay or additional ground bounce noise.

The PI5C3303 device has an active HIGH enable.
