PI5C32X384

Features:

• Near-Zero propagation delay
• 5 switches connect inputs to outputs
• Direct bus connection when switches are ON
• Ultra-low quiescent power 32X384 (0.2A typical) Ideally suited for notebook applications
• Packaging (Pb-free & Green Available): 48-pin 150-mil wide plastic BQSOP (B) 48-pin 240-mil wide plastic TSSOP (A)

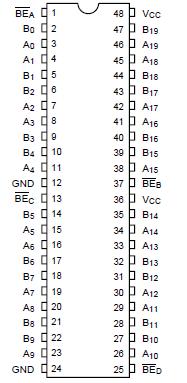

Pinout






Specifications

Product Specs: Voltage: 5V Function: 2-Port Pins: 48 Package: TSSOP (A48)BQSOP (B48) Pb-Free and Green: No - more info RoHS Material Declarations: PI5C32X245BE MDR (pdf)PI5C32X384BE MDR (pdf)




Description
