Product Details

Description



Features:

• Near-Zero propagation delay
• 5 switches connect inputs to outputs
• Direct bus connection when switches are ON
• Ultra-low quiescent power (0.2A typical) Ideally suited for notebook applications
• Pin compatible with QS32X245
• Industrial operating temperature: 40°C to +85°C
• Packaging (Pb-free & Green available): 40-pin 150-mil wide plastic BQSOP (B)

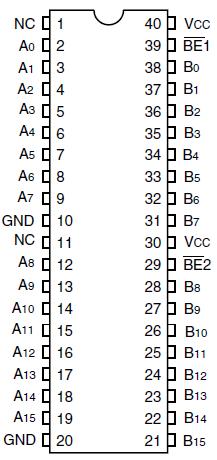

Pinout

  Connection Diagram




Specifications

Above which the useful life may be impaired. For user guidelines, not tested.

Storage Temperature ..........................................................65°C to +150°C
Ambient Temperature with Power Applied .........................40°C to +85°C
Supply Voltage to Ground Potential (Inputs & Vcc Only) ...0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only)0.5V to +7.0V
DC Input Voltage ..................................................................0.5V to +7.0V
DC Output Current............................................................................120 mA
Power Dissipation .................................................................................0.5W

Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.






Description

Pericom Semiconductor's PI5C32X245 is a 16-bit, 2-port bus switch. Two enable signals (BEn) turn the switches on. The bus switch creates no additional propagational delay or additional ground bounce noise.
