PI5C3126

Above which the useful life may be impaired. For user guidelines, not tested.

Storage Temperature .................................................................. 65°C to +150°C
Ambient Temperature with Power Applied ................................. 40°C to +85°C
Supply Voltage to Ground Potential (Inputs & VCC Only)........... 0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) ........ 0.5V to +7.0V
DC Input Voltage .......................................................................... 0.5V to +7.0V
DC Output Current......................................................................................120mA
Power Dissipation ..........................................................................................0.5W

Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

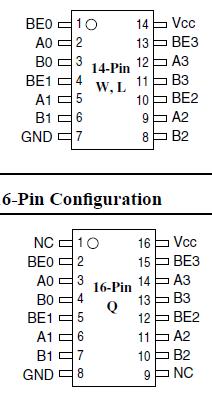

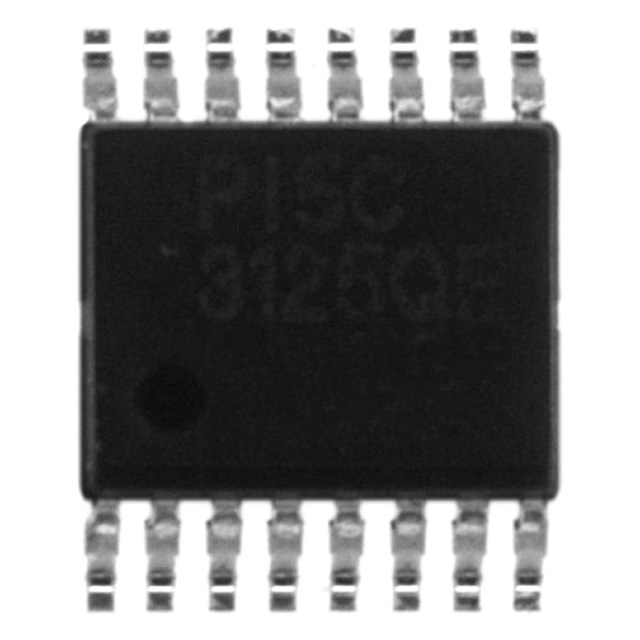

Pericom Semiconductor's PI5C3125 and PI5C3126 are 4-bit Bus Switches designed with four individual 5 bus witches with fast indiviual enables in an industry standard 74XX125/126 pinout. When enabled via the associated Bus Enable (BE) pin, the "A" pin is directly connected to the "B" pin for that particular gate. The bus switch ntroduces no additional propagation delay or additional ground bounce noise.

The PI5C3125 device has active LOW enables, and the PI5C3126 has active HIGH enables.
