PI5C16862C

Above which the useful life may be impaired. For user guidelines, not tested.

Storage Temperature............................................................ 65°C to +150°C
Ambient Temperature with Power Applied ........................... 40°C to +85°C
Supply Voltage to Ground Potential (Inputs & VCC Only) ... 0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) . 0.5V to +7.0V
DC Input Voltage ................................................................... 0.5V to +7.0V
DC Output Current ..............................................................................120mA
Power Dissipation ...................................................................................0.5W

Note: Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

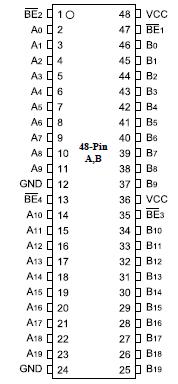

Pericom Semiconductor's PI5C series of Bus Switch circuits are produced using the Company's advanced submicron CMOS technology, achieving industry leading speed. The PI5C16862C is configured as a 20-bit, 2-port bus switch designed with a low ON resistance (5W) allowing inputs to be connected directly to outputs. The bus switch creates no additional propagational delay or additional ground bounce noise. The switches are turned ON by the Bus Enable (BE x) input signal.

The PI5C16862C can withstand undershoot of up to 1V.
