PI5C162292

Storage Temperature ................................................................. 65°C to +150°C
Ambient Temperature with Power Applied ................................. 40°C to +85°C
Supply Voltage to Ground Potential (Inputs & VCC Only) ......... 0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) ....... 0.5V to +7.0V
DC Input Voltage ......................................................................... 0.5V to +7.0V
DC Output Current .................................................................................... 120mA
Power Dissipation ........................................................................................ 1Watt

Note: Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

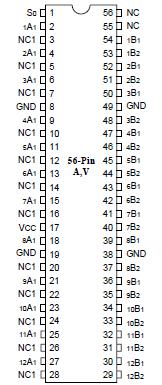

Pericom Semiconductor's PI5C series of logic circuits are produced using the Company's advanced 0.6 micron CMOS technology. The PI5C16292 and PI5C162292 are 12-bit to 24-bit Mux/Demux Bus switches designed with a low ON resistance allowing inputs to be connected directly to outputs.

The PI5C16292 and PI5C162292 have a built-in 25-ohm series resistor to reduce noise resulting from reflections, thus eliminating the need for an external terminating resistor.A2 port is not externally connected and, as a result, has an internal 500-ohm pulldown resistor to ground.
