PI49FCT805T

Features:

` Extremely low output skew: 0.5ns
` Monitor output pin
` Clock busing with Hi-Z state control
` TTL input and CMOS output compatible
` Extremely low static power (1mW, typ.)
` Hysteresis on all inputs
` Packages available:
- 20-pin 209 mil wide SSOP (H)
- 20-pin 300 mil wide SOIC (S)
- 20-pin 150 mil wide QSOP (Q)
` Device models available on request
` Industrial Operation at -40ºC to +85ºC

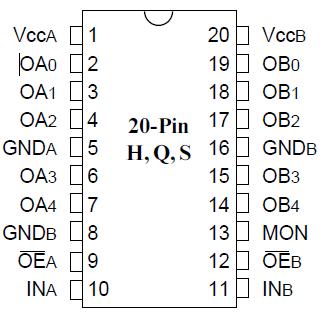

Pinout






Specifications

Product Specs: Voltage: 5V Function: Buffer, Driver Jitter: - Skew: 700ps Speed: 50MHz I/O: CMOS Temp: Ind Outputs: 5+5 Pins: 20 Packages: SSOP (H20)QSOP (Q20)SOIC (S20) Pb-Free and Green: Yes - more info RoHS Material Declarations: Not Available

Storage Temperature .................................................. -65°C to +150°C
Ambient Temperature with Power Applied ........................-40°C to +85°C
Supply Voltage to Ground Potential (Inputs & Vcc Only) ....... -0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) .... -0.5V to +7.0V
DC Input Voltage .................................................................-0.5V to +7.0V
DC Output Current ..........................................................................120mA
Power Dissipation .............................................................................. 0.5W

Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Description

PI49FCT805T: 5V, 50MHz Dual 1:5 Output Clock Driver with Monitor Output, Industrial Temp. Operation

Pericom Semiconductor's PI49FCT series of logic circuits are produced using the Company's advanced 0.8 micron CMOS technology, achieving industry leading speed grades.The PI49FCT805T and PI49FCT2805T are non-inverting clock drivers. The PI49FCT806T is an inverting clock driver designed with two independent groups of buffers that have Hi-Z state Output Enable inputs (active LOW) with a 1-in, 5-out configuration per group. Each clock driver consists of two banks of drivers, driving five outputs each from a standard TTL-compatible CMOS input.

The PI49FCT805T also features a 25-ohm on-chip resistor for lower noise.
