PI49FCT3807

Features:

• 3.3V version of PI49FCT807
• Ultra low skew: 0.35ns
• Low Input Capacitance
• Minimum duty cycle distortion
• 1:10 fanout
• High speed: 3.5ns propagation
• TTL input and CMOS output compatible
VOH = 3.3V (typical) VOH = 0.3V (typical) • Industrial operation at 40°C to 85°C
• Packaging (Pb-free & Green available): 20-pin 300-mil wide SOIC (S) 20-pin 150-mil wide QSOP (Q) 20-pin 209mil wide SSOP (H)




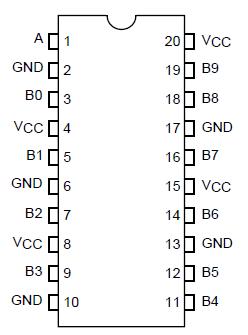

Pinout






Specifications

Product Specs: Voltage: 3.3V Function: Buffer, Driver Jitter: - Skew: 500ps Speed: 50MHz I/O: CMOS Temp: Ind Outputs: 10 Pins: 20 Packages: SSOP (H20)QSOP (Q20)SOIC (S20) Pb-Free and Green: Yes - more info RoHS Material Declarations: PI49FCT3807HE MDR (pdf)PI49FCT3807QE MDR (pdf)PI49FCT3807SE MDR (pdf)

Above which the useful life may be impaired. For user guidelines, not tested.

Storage Temperature ............................................................ 65°C to +150°C
Ambient Temperature with Power Applied ........................... 40°C to +85°C
Supply Voltage to Ground Potential (Inputs & VCC Only).....0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) ..0.5V to +7.0V
DC Input Voltage ....................................................................0.5V to +7.0V
DC Output Current............................................................................... 120mA
Power Dissipation ................................................................................... 0.5W


Note:Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Description

3.3V, 50MHz 1:10 Output Non-Inverting Clock Driver, Industrial Temp. Operation.Pericom Semiconductor's PI49FCT3807 is a 3.3V 1-to-10 clock driver. This low skew clock driver features one input and ten outputs fanout. The large fanout from a single input line reduces loading on input clock. TTL level ouputs of PI49FCT3807 reduce noise levels on the part. Typical applications are clock and signal distribution.
