PI49FCT3805D

Features:

` Low output skew: <270ps
` Switching frequency of 133 MHz
` Fast output rise/fall time: <1.5ns
` Low propagation delay: <3.0ns
` Low input capacitance: <6.0pF
` Balanced CMOS outputs
`Industrial Temperature: 40°C to +85°C
`3.3V ±10% operation
`Packages available:20-pin 300-mil wide SOIC (S)20-pin 150-mil wide QSOP (Q)20-pin 209-mil wide SSOP (H)

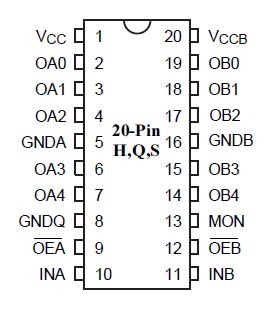

Pinout






Specifications

Above which the useful life may be impaired. For user guidelines, not tested.

Storage Temperature ............................................................. 65°C to +150°C
Ambient Temperature with Power Applied ............................. 40°C to +85°C
Supply Voltage to Ground Potential (Inputs & VCC Only) ............0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & I/O Only) .. 0.5V to +VCC +0.5V
DC Input Voltage ...................................................................... 0.5V to +4.6V
DC Output Current ...............................................................................120 mA
Power Dissipation .................................................................................... 0.5W

Note: Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Product Specs: Voltage: 3.3V Function: Buffer, Driver Jitter: - Skew: 270ps Speed: 133MHz I/O: CMOS Temp: Ind Outputs: 5+5 Pins: 20 Packages: SSOP (H20)QSOP (Q20)SOIC (S20) Pb-Free and Green: Yes - H, S - more info RoHS Material Declarations: PI49FCT3805DHE MDR (pdf)PI49FCT3805DQE MDR (pdf)PI49FCT3805DSE MDR (pdf)




Description

Pericom Semiconductor's PI49FCT3805D logic circuits are produced using the Company's advanced submicron CMOS technology to achieve fast speed, low skew, fast slew rate, and low propagation delay for most computing and communication applications.

The PI49FCT3805D is composed of non-inverting drivers. The outputs are configured into 2 groups of one-in, five-out with independent output enable. Group B has an extra MON output. Excellent output signals to power and ground ratio minimize power and ground noise and also improves output performance.
