PI3VT3384

Features: ` Near zero propagation delay` Low ON resistance switches connect inputs to outputs` 2.5V Supply Voltage Operation` 2.5V or 1.8V switching` Packages available:- 24-pin, 150 mil wide plastic QSOP (Q)- 24-pin, 173 mil wide plastic TSSOP (L)Application· 3.3V to 2.5V level shifting (voltage ...

product image

PI3VT3384 Picture
See larger image
SeekIC No. : 004460957 Detail

PI3VT3384: Features: ` Near zero propagation delay` Low ON resistance switches connect inputs to outputs` 2.5V Supply Voltage Operation` 2.5V or 1.8V switching` Packages available:- 24-pin, 150 mil wide plasti...

PI3VT3384 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PI3VT3384
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Near zero propagation delay
` Low ON resistance switches connect inputs to outputs
` 2.5V Supply Voltage Operation
` 2.5V or 1.8V switching
` Packages available:
- 24-pin, 150 mil wide plastic QSOP (Q)
- 24-pin, 173 mil wide plastic TSSOP (L)


Application

· 3.3V to 2.5V level shifting (voltage translation)
· 2.5V to 1.8V level shifting (voltage translation)


Pinout

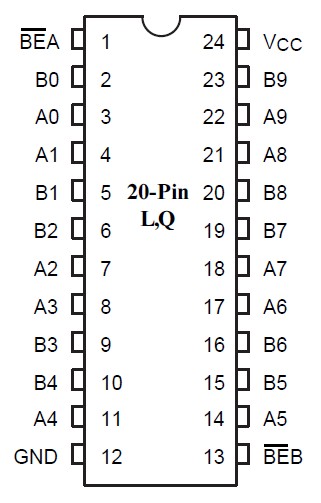

Connection Diagram


Specifications

Storage Temperature ................................................................................-65 to +150
Ambient Temperature with Power Applied .................................................... -40 to +85
Supply Voltage to Ground Potential ..............................................................-0.5V to +4.6V
DC Input Voltage .........................................................................................-0.5V to +5.5V
DC Output Current ..................................................................................................120mA
Power Dissipation ...................................................................................................... 0.5W
Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

Pericom Semiconductor's PI3VT3384 of logic circuits are produced using the Company's advanced submicron CMOS technology, achieving industry leading performance.

The PI3VT3384, is a 2.5V or 3.3V 8-bit, 2-port bus switch, is designed with a low ON resistance (5 ohms). The switches are turned ON or enabled by the Bus Enable (BEn) input signal.Given a 3.3V supply and an input voltage of 3.3V, the switch translates to an output voltage of 2.5V. Similarly, when operated with a 2.5V supply and given 2.5V inputs, the device translates the outputs to 1.8V.
