PI3VT3306

Features:

` Near zero propagation delay
` Low ON resistance switches connect inputs to outputs
` 2.5V Supply Voltage Operation
` 2.5V or 1.8V switching
` Packages available:
- 8-pin, 173 mil wide plastic TSSOP (L)
- 8-pin, 118 mil wide plastic MSOP (U)




Application

· 3.3V to 2.5V level shifting (voltage translation)
· 2.5V to 1.8V level shifting (voltage translation)

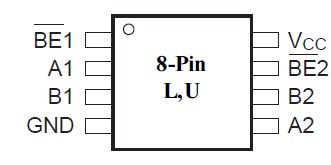

Pinout






Specifications

Product Specs: Voltage: 2.5V/3.3V Function: Low Voltage Translator Pins: 8 Package: TSSOP (L8)MSOP-8 (U8) Pb-Free and Green: No - more info RoHS Material Declarations: PI3VT3306LE MDR (pdf)PI3VT3306UE MDR (pdf)

Storage Temperature .....................................................-65 to +150
Ambient Temperature with Power Applied ......................... -40 to +85
Supply Voltage to Ground Potential ...................................-0.5V to +4.6V
DC Input Voltage ..............................................................-0.5V to +5.5V
DC Output Current .......................................................................120mA
Power Dissipation ............................................................................0.5W

Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

3.3V to 2.5V / 2.5V to 1.8V, 2-bit, 2-Port, Low Voltage Translator Bus Switch. Pericom Semiconductor's PI3VT3306 of logic circuits are produced using the Company's advanced submicron CMOS technology, achieving industry leading performance.

The PI3VT3306 is a 2.5V or 3.3V 2-bit, 2-port bus switch designed with a low ON resistance (5 ohms). The switches are turned ON or enabled by the Bus Enable (BEn) input signal.Given a 3.3V supply and an input voltage of 3.3V, the switch translates to an output voltage of 2.5V. Similarly, when operated with a 2.5V supply and given 2.5V inputs, the device translates the outputs to 1.8V.
