PI3V514

Features:

• Near-Zero propagation delay
• 5 switches connect inputs to outputs
• High signal passing bandwidth (400 MHz)
• Beyond Rail-to-Rail switching
• 5V I/O tolerant with 3.3V supply
• 2.5V and 3.3V supply voltage operation
• Low Crosstalk (XTALK = -60dB Typ.)
• Low Off-Isolation (OIRR = -60dB Typ.)
• Hot-insertion capable
• Industrial operating temperature: -40ºC to +85ºC
• 2KV ESD Protection (human body model)
• Latch-up performance >250mA per JESD17
• Packaging (Pb-free & Greeen available): 48-pin 150-mil wide plastic BQSOP (B




Application

• Projection TV and LCD TV
• Video consumer applications
• Analog video signal processing

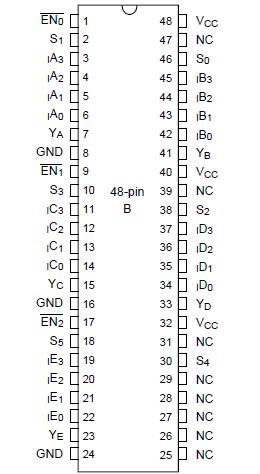

Pinout






Specifications

Above which the useful life may be impaired. For user guidelines, not tested.
Storage Temperature ................................................ 65°C to +150°C
Ambient Temperature with Power Applied ............... 40°C to +85°C
Supply Voltage to Ground Potential ........................... 0.5V to +4.6V
DC Input Voltage ........................................................ 0.5V to +6.0V
DC Output Current................................................................... 120mA
Power Dissipation ....................................................................... 0.5W
Note:
Stresses greater than those listed under MAXIMUMRATINGS may cause permanent damage to the device. This is astress rating only and functional operation of the device at theseor any other conditions above those indicated in the operationalsections of this specification is not implied. Exposure to absolutemaximum rating conditions for extended periods may affect reliability.

Product Specs: Configuration: 5-Channel, 4:1 Type: Switch Dual Supply Operation: No Single Supply Operation: Yes: 3V Pins: 48 Package: BQSOP (B48) Pb-Free and Green: Yes - more info RoHS Material Declarations: PI3V514BE MDR (pdf)




Description

The PI3V514 is a true bi-directional 5-Port 4:1 multiplexer/demultiplexer with Hi-Z outputs that is recommended for both RGBand composite video switching applications. With the additional 2ports, vertical and horizontal synchronous signals can be switchedin addition to switching the RGB and composite signals betweendifferent components, such as DVD, VCR, PCs and etc. With thencreased 4:1 channels, multiple components, such as VCR, DVD,PC1, PC2 and etc. can be put on the video networks. The Videoswitch can be driven from a current output RAMDAC or voltageutput composite video source.

Low On-Resistance, Low Crosstalk, Low OFF Isolation and widebandwidth features make it ideal for video and other applications.Industry leading advantages include a near-zero propagation delay,resulting from its low channel resistance and I/O capacitance. The PI3V514 switch is bidirectional and offers little or no attenuation of the highspeedsignals at the outputs. The device also has exceptional highcurrent capability which is far greater than most analog switchesoffered today. The PI3V514 offers a high-performance (400 MHz), ow-cost solution to switch between video sources.
