PI3V314

Features:

• Near-Zero propagation delay
• 5 switches connect inputs to outputs
• High signal passing bandwidth (375MHz)
• Beyond Rail-to-Rail switching
• 5V I/O tolerant with 3.3V supply
• 2.5V and 3.3V supply voltage operation
• Hot insertion capable
• Low Crosstalk (XTALK = -60dB Typ.)
• Low Off-Isolation (OIRR = -60db Typ.)
• Industrial operating temperature: -40ºC to +85ºC
• 2KV ESD Protection (human body model)
• Latch-up performance >250mA per JESD17
• Packaging (Pb-free & greeen available): 40-Pin 150-mil wide plastic BQSOP(B)




Application

• Projection TV and LCD TV
• Video consumer applications
• Analog video signal processing

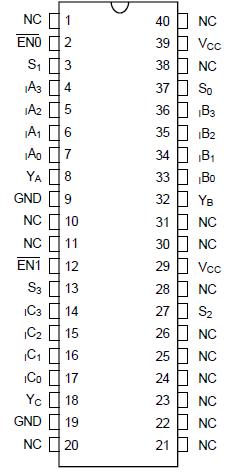

Pinout






Specifications

Product Specs: Configuration: 3-Channel, 4:1 Type: Switch Dual Supply Operation: No Single Supply Operation: Yes: 3V Pins: 40 Package: BQSOP (B40) Pb-Free and Green: Yes - more info RoHS Material Declarations: PI3V314BE MDR (pdf)

(Above which the useful life may be impaired. For user guidelines, not tested.
Storage Temperature ................................................ 65°C to +150°C
Ambient Temperature with Power Applied ............... 40°C to +85°C
Supply Voltage to Ground Potential ........................... 0.5V to +4.6V
DC Input Voltage ........................................................ 0.5V to +6.0V
DC Output Current................................................................... 120mA
Power Dissipation ....................................................................... 0.5W

Note:
Stresses greater than those listed under MAXIMUMRATINGS may cause permanent damage to the device. This is astress rating only and functional operation of the device at theseor any other conditions above those indicated in the operationalsections of this specification is not implied. Exposure to absolutemaximum rating conditions for extended periods may affect reliability.

Description

PI3V314: 3-Channel, 3.3V, 4:1 Video Switch

The PI3V314 is a true bi-directional 3-Port 4:1 multiplexer/demultiplexer with Hi-Z outputs that is recommended for both RGBand composite video switching applications. With the increased 4:1 channels, multiple components, such as VCR, DVD, PC1, PC2and etc. can be put on the video networks. The VideoSwitch canbe driven from a current output RAMDAC or voltage output compositeideo source.

Low On-Resistance, Low Crosstalk, Low OFF Isolation and widebandwidth features make it ideal for video and other applications.Industry leading advantages include a near zero propagation delay,resulting from its low channel resistance and I/O capacitance. The PI3V314 switch is bi-directional and offers little or no attenuation of the highspeedsignals at the outputs. The device also has exceptional highcurrent capability which is far greater than most analog switchesoffered today. The PI3V314 offers a high-performance (375 MHz),low-cost solution to switch between video sources.
