PI3USB14

Features: • Near-Zero propagation delay• 5 switches connect inputs to outputs• High signal passing bandwidth (300MHz)• Beyond Rail-to-Rail switching• 5V I/O tolerant with 3.3V supply• 2.5V and 3.3V supply voltage operation• Hot insertion capable• Ind...

product image

PI3USB14 Picture
See larger image
SeekIC No. : 004460934 Detail

PI3USB14: Features: • Near-Zero propagation delay• 5 switches connect inputs to outputs• High signal passing bandwidth (300MHz)• Beyond Rail-to-Rail switching• 5V I/O tolerant wi...

PI3USB14 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PI3USB14
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Near-Zero propagation delay
• 5 switches connect inputs to outputs
• High signal passing bandwidth (300MHz)
• Beyond Rail-to-Rail switching
• 5V I/O tolerant with 3.3V supply
• 2.5V and 3.3V supply voltage operation
• Hot insertion capable
• Industrial operating temperature: -40ºC to +85ºC
• 2KV ESD Protection (human body model)
• Latch-up performance >250mA per JESD17
• Packaging (Pb-free & Green available): 16-pin 150-mil wide plastic QSOP (Q) 16-pin 173-mil wide plastic TSSOP (L) 20-contact TQFN (ZH)




Pinout

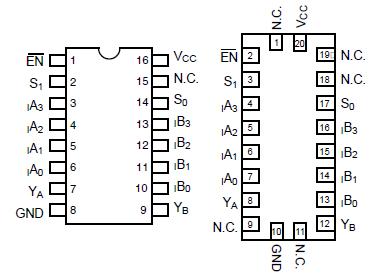

Connection Diagram




Specifications

Above which the useful life may be impaired. For user guidelines, not tested.
Storage Temperature ................................................ 65°C to +150°C
Ambient Temperature with Power Applied ............... 40°C to +85°C
Supply Voltage to Ground Potential ........................... 0.5V to +4.6V
DC Input Voltage ........................................................ 0.5V to +6.0V
DC Output Current................................................................... 120mA
Power Dissipation ....................................................................... 0.5W

Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Product Specs: Configuration: Mux: 4-Channel, 4:1 Type: MUX Dual Supply Operation: No Single Supply Operation: Yes: 3V Pins: 16 Package: TSSOP (L16)QSOP (Q16)TDFN (ZH20) Pb-Free and Green: Yes - more info RoHS Material Declarations: PI3USB14LE MDR (pdf)PI3USB14QE MDR (pdf)PI3USB14ZHE MDR (pdf)




Description

The PI3USB14 is a 2-channel, 4:1 Multiplexer/Demultiplexer with3-state outputs. The switch introduces no additional ground bouncenoise or propagation delay.
The PI3USB14 device is very useful in switching USB 2.0 signalsand others that have high bandwidth (300MHz).
