PI3CH281

Features:

• Near-zero propagation delay
• 5 switches connect inputs to outputs
• High signal passing bandwidth (300MHz)
• Beyond Rail-to-Rail switching
• 5V I/O tolerant with 3.3V supply
• 2.5V and 3.3V supply voltage operation
• Hot insertion capable
• Industrial operating temperature: -40ºC to +85ºC
• 2KV ESD Protection (human body model)
• Latch-up performance >250mA per JESD17
• Packaging (Pb-free & greeen available): 16-pin 150-mil wide plastic QSOP (Q) 16-pin 173-mil wide plastic TSSOP (L) 20-contact TQFN (ZH)

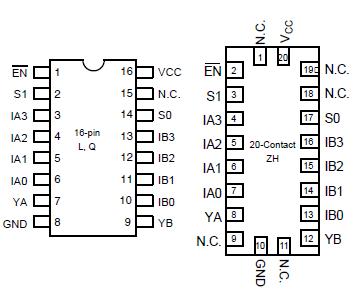

Pinout






Specifications

Product Specs: Voltage: 2.5V/3.3V Function: Mux/Demux Pins: 16 Package: TSSOP (L16)QSOP (Q16) Pb-Free and Green: Yes - more info RoHS Material Declarations: PI3CH281LE MDR (pdf)PI3CH281QE MDR (pdf)

Above which the useful life may be impaired. For user guidelines, not tested.
Storage Temperature ................................................ 65°C to +150°C
Ambient Temperature with Power Applied ............... 40°C to +85°C
Supply Voltage to Ground Potential ........................... 0.5V to +4.6V
DC Input Voltage ........................................................ 0.5V to +6.0V
DC Output Current................................................................... 120mA
Power Dissipation ....................................................................... 0.5W
Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Description

Low Voltage, High-Bandwidth, 2-Channel, 4:1 Mux/Demux, NanoSwitch w/Single Enable. Pericom Semiconductor's PI3CH series of switch circuits are produced using the Company's advanced sub-micron CMOS technology, achieving industry leading performance.The PI3CH281 is a 2-channel, 4:1 Multiplexer/Demultiplexer with 3-state outputs. The switch introduces no additional ground bounce noise or propagation delay.
The PI3CH281 device is very useful in switching signals that have high bandwidth (300MHz).
