PI3C6800

Features:

· Near zero propagation delay
· 5W switch connection between two ports
· High Bandwidth (>400 MHz)
· Rail-to-Rail 3.3V or 2.5V Switching
· Outputs are precharged by bias voltage to minimize signal distortion during live insertion
· 5V I/O Tolerant
· 2.5V Supply Voltage Operation
· Package options:  24-pin 150 mil wide plastic QSOP (Q)  24-pin 173 mil wide TSSOP (L)

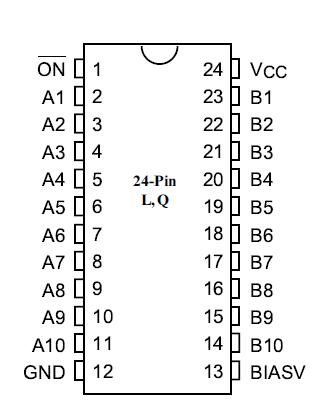

Pinout




Specifications

Above which the useful life may be impaired. For user guidelines, not tested.

Storage Temperature ........................................ –65°C to +150°C
Supply Voltage Range .......................................... –0.5V to 4.6V
DC Input Voltage(1) ...............................................–0.5V to +7V
Input Clamp Current, IIK (V1< 0) .....................................–50mA
DC Output Current ......................................................... 120 mA
Power Dissipation(2) ..........................................................0.5W


Note: Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Description

Pericom Semiconductor's PI3C series of logic circuits are produced using the Company's advanced submicron CMOS technology, achieving industry leading performance.The PI3C6800 is a 10-bit bus switch with low on-state resistance. The PI3C6800 bus switch creates no additional propagation delay. To minimize  live-insertion noise, the device also precharges the B port to a userselectable bias voltage (BIASV).

The  PI3C6800 switch is turned on by a single enable (ON) input. When ON is LOW, the switch is on and port A is connnected to port B. When ON is HIGH, the switch between port A and port B is open and the B port is precharged to BIASV through the equivalent of a 10-kW resistor.
