PI3B32X245

Features:

` Fast Switching Speed: 4.5ns max.
` Permits Hot Insertion
` Near-zero propagation delay
` 5W switches connect inputs to outputs
` Direct bus connection when switches are ON
` Ultra-low quiescent power (1.0µA typical)Ideally suited for notebook applications
`Industrial operating temperature: 40°C to +85°C
`TTL - compatible control of input levels
` Packages available:40-pin 150 mil wide plastic BQSOP (B)

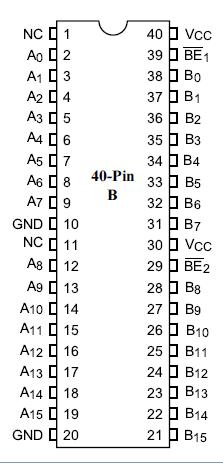

Pinout






Specifications

Product Specs: Voltage: 3.3V Function: 2-Port Pins: 40 Package: BQSOP (B40) Pb-Free and Green: No - more info RoHS Material Declarations: Not Available

Above which the useful life may be impaired. For user guidelines, not tested.

Storage Temperature......................................................... 65°C to +150°C
Ambient Temperature with Power Applied ........................ 40°C to +85°C
Supply Voltage to Ground Potential (Inputs & VCC Only) . 0.5V to +4.6V
Supply Voltage to Ground Potential (Outputs & D/O Only)0.5V to +4.6V
DC Input Voltage ................................................................. 0.5V to +7.0V
DC Output Current ........................................................................... 120mA
Power Dissipation ................................................................................ 0.5W

Note: Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Description

PI3B32X245: 3.3V 16-Bit Bus Switch. Pericom Semiconductor's PI3B series of logic circuits are produced using the Company's advanced submicron CMOS technology.

The PI3B32X245 is a 3.3V,16-bit, 2-port bus switch. Two enable signals (BEn) turn the switches on. The bus switch creates no additional propagational delay or additional ground bounce noise.
