PI3B16248

Features: • Near-Zero propagation delay• RON is 5 typical at 3.3V• Fast switching speed: 4.5ns (max.)• VCC operating range: 3.0V to 3.6V• 500 pulldown to the unconnected B port• Industrial operating temperature: 40°C to +85°C• Make-before-break action̶...

product image

PI3B16248 Picture
See larger image
SeekIC No. : 004460843 Detail

PI3B16248: Features: • Near-Zero propagation delay• RON is 5 typical at 3.3V• Fast switching speed: 4.5ns (max.)• VCC operating range: 3.0V to 3.6V• 500 pulldown to the unconnecte...

PI3B16248 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PI3B16248
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Near-Zero propagation delay
• RON is 5 typical at 3.3V
• Fast switching speed: 4.5ns (max.)
• VCC operating range: 3.0V to 3.6V
• 500 pulldown to the unconnected B port
• Industrial operating temperature: 40°C to +85°C
• Make-before-break action
• Packaging (Pb-free & Green): 80-pin BQSOP (B)




Pinout

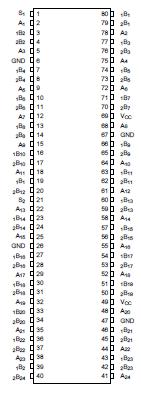

Connection Diagram




Specifications

Above which useful life may be impaired. For user guidelines, not tested.

Storage Temperature ........................................................ 65°C to +150°C
Ambient Temperature with Power Applied ....................... 40°C to +85°C
Supply Voltage Range......................................................... 0.5V to +4.6V
DC Input Voltage ................................................................ 0.5V to +4.6V
DC Output Current............................................................................120mA
Power Dissipation ................................................................................0.5W

Note:Stresses greater than those listed under MAXIMUMRATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.






Description

PI3B16248: 3.3V 24:48 Mux/Demux Bus Switch
