PI3B16226

Features:

• RON is 8-ohms typical
• Pulldown on B Ports
• Low Power 1mW
• Industrial Operation Temperature: 40ºC to 85ºC
• Near-Zero Propagation Delay
• Switching Speed: 4.5ns max.
• Channel on capacitance: 11pF typ.
• VCC Operating Range: 3.3V±10%
• >100 MHz bandwidth
• Packaging (Pb-free & Green available): -40-pin BQSOP (B)




Application

Memory Switching

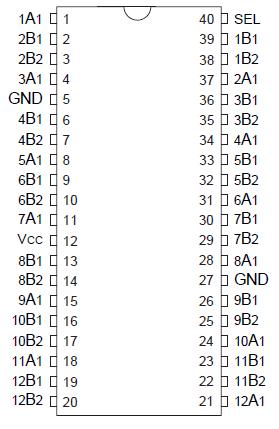

Pinout






Specifications

Above which useful life may be impaired. For user guidelines, not tested.
Storage Temperature Range, TSTG ......................................... 65ºC to +150ºC
Supply Voltage Range, VCC ............................................. 0.5V to +4.6V
Bias Voltage Range, BIASV ............................................. 0.5V to +4.6V
Input Voltage Range .......................................................... 0.5V to +4.6V
DC Output Current ......................................................................... 120mA
Power Dissipation .............................................................................0.5W

Note: Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Product Specs: Voltage: 3.3V Function: Mux/Demux Pins: 40 Package: BQSOP (B40) Pb-Free and Green: Yes - more info RoHS Material Declarations: PI3B16226BE MDR (pdf)




Description

Pericom Semiconductor's PI3B16226 is a 12-bit to 24-bit mux/demux switch. Industry leading advantages include almost zero propagation delay of 500ps because of 8-ohm channel resistance and low I/O capacitance.

A1 port demultiplexes to either port B1 or B2. The  PI3B16226 switch is bidirectional.
