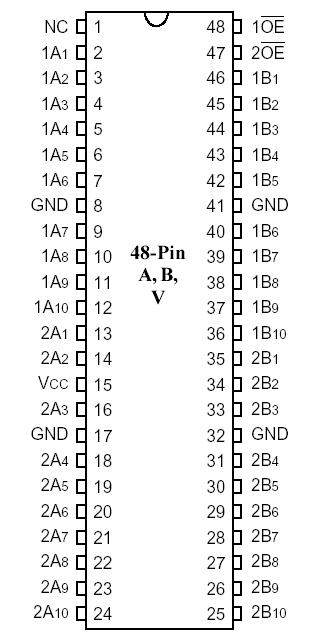

PI3B162210

Storage Temperature .................................................... -65°C to +150°C
Ambient Temperature with Power Applied ...................... -0°C to +85°C
Supply Voltage Range .................................................... -0.5V to +4.6V
DC Input Voltage ............................................................ -0.5V to +4.6V
DC Output Current ...................................................................... 120mA
Power Dissipation .......................................................................... 0.5W

Note:Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Pericom Semiconductorís PI3B series of BusSwitch circuits are produced using the Companyís advanced submicron CMOS technology, achieving industry leading speed.The PI3B162210 is configured as a 3.3 volt 20-bit, 2-port bus switch designed with a low ON resistance (5 ohms) allowing inputs to be connected directly to outputs. The bus switch creates no additional propagational delay or additional ground bounce noise. Switches are turned ON by the Bus Enable (xOE) input signal.

The PI3B162210 device has a built-in 25-ohm series resistor to reduce noise resulting from reflections, thus eliminating the need for an external terminating resistor.
