PI3B16212

Above which useful life may be impaired. For user guidelines, not tested.

Storage Temperature ................................................... –65°C to +150°C
Ambient Temperature with Power Applied ................... –40°C to +85°C
Supply Voltage Range .................................................... –0.5V to +4.6V
DC Input Voltage ............................................................ –0.5V to +4.6V
DC Output Current ..................................................................... 120mA
Power Dissipation .......................................................................... 0.5W

Note: Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Pericom Semiconductor's PI3B series of logic circuits are produced using the Company's advanced submicron CMOS technology.

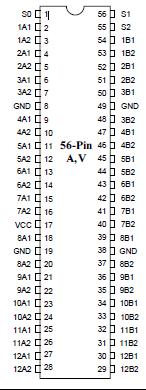

In the PI3B series, the PI3B16212 and PI3B162212 are 3.3 volt, 24-bit bus exchange switches designed with low ON resistance allowing inputs to be connected directly to outputs. The devices operate as a 24-bit bus switch or as a 12-bit exchanger, providing data exchange between the four signal ports via the data select pins (S0-S2).

The PI3B seriesdevice has a built-in 25-ohm series resistor to reduce reflection noise, thus eliminating the need for an external terminating resistor.
