PI3A4624

Features: •Low On-Resistance: 0.4 (+2.7V Supply)•RON Matching: 0.09 Max.at 25 °C•RON Flatness: 0.1 Max. (+3.0V Supply) at 25 °C•Low 2nA Input Leakage at 25 °C•+1.5V to +3.6V Single-Supply Operation•Fast Switching Time: 40ns Max.•-41dB Off-Isolation at 100K...

product image

PI3A4624 Picture
See larger image
SeekIC No. : 004460823 Detail

PI3A4624: Features: •Low On-Resistance: 0.4 (+2.7V Supply)•RON Matching: 0.09 Max.at 25 °C•RON Flatness: 0.1 Max. (+3.0V Supply) at 25 °C•Low 2nA Input Leakage at 25 °C•+1.5V to ...

PI3A4624 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PI3A4624
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Low On-Resistance: 0.4 (+2.7V Supply)
•RON Matching: 0.09 Max.at 25 °C
•RON Flatness: 0.1 Max. (+3.0V Supply) at 25 °C
•Low 2nA Input Leakage at 25 °C
•+1.5V to +3.6V Single-Supply Operation
•Fast Switching Time: 40ns Max.
•-41dB Off-Isolation at 100KHz
•TTL/CMOS Logic Compatible
•Low Power Consumption: 5W
•Packaging (Pb-free & Green available): 6-pin Small Compact SOT-23 (T) 6-pin No Lead (TDFN) (ZC)


Application

•Communication Circuits
•Cellular Phones
•Audio and Video Signal Routing
•Portable Battery-Operated Equipment
•Data Acquisition Systems
•Computer Peripherals
•Telecommunications
•Relay Replacement
•Wireless Terminals and Peripherals
•Hard Drives
•Modems

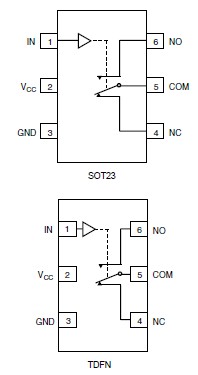

Pinout

Connection Diagram


Specifications

Voltages Referenced to GNDVCC .......................................................................0.5V to +3.6V
VIN, VCOM, VNC, VNO (1).............................0.5V to VCC +0.3V or 30mA, whichever occurs first
Current (any terminal)......................................................±200mA
Peak Current, COM, NO, NC (Pulsed at 1ms, 10% duty cycle)......................................±400mA


Description

The PI3A4624 is a single-pole, double-throw (SPDT) analog switch. Specifications include a low ON-Resistance of 0.4, and fast switching times (40ns Max.) with 3.0V supply operation.

Specifications of PI3A4624  are given for 1.8V, 2.5V and 3.3V power supply operation. Operating voltage range is +1.5V to +3.6V.
To minimize PC board area use, the device is available in the ultra compact TDFN, and the small compact SOT-23, 6-pin packages. Operating temperature range is 40°C to 85°C.
