PI3A3160

Features:

• CMOS Technology for Bus and Analog Applications
• Low On-Resistance: 0.4 (+2.7V Supply)
• Wide VCC Range: +1.5V to +3.6V
• Low Power Consumption : 5W
• Rail-to-Rail switching throughout Signal Range
• Fast Switching Speed: 20ns max. at 3.3V
• High Off Isolation: 27dB at 100 KHz
• 41dB (100 KHz) Crosstalk Rejection Reduces Signal Distortion
• Extended Industrial Temperature Range: 40°C to 85°C
• Packaging: Pb-free & Green, 12-pin TDFN (ZG) Pb-free & Green, 12-pin TDFN (ZE)


Application

• Cell Phones
• PDAs
• Portable Instrumentation
• Battery Powered Communications
• Computer Peripherals

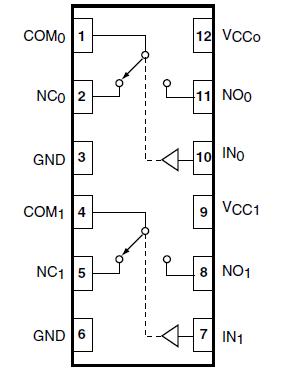

Pinout




Specifications

Voltages Referenced to GND
VCC .................................................................... 0.5V to +3.6V
VIN, VCOM, VNC, VNO (1)............................0.5V to V+ +0.3V
or 30mA, whichever occurs first
Current (any terminal)................................................... ±200mA
Peak Current, COM, NO, NC
(Pulsed at 1ms, 10% duty cycle)................................... ±400mA


Description

The PI3A3160 is a fast Dual single-pole double-throw (SPDT) CMOS switch. It can be used as an analog switch or as a lowdelay bus switch. Specified over a wide operating power supply voltage range, +1.5V to +3.6V, the switch has an On-Resistance of 0.4 at 3.0V.

Control inputs, IN, tolerates input drive signals up to 3.3V, independent of supply voltage.PI3A3160 is a lower voltage and On-Resistance replacement for the PI5A3158.
