PGA102

Features: `DIGITALLY PROGRAMMABLE GAIN: G = 1, 10, 100`LOW GAIN ERROR: 0.025% max`FAST SETTLING: 2.8s to 0.01%`16-PIN PLASTIC AND CERAMIC DIPApplication·DATA ACQUISITION AMPLIFIER·FIXED-GAIN AMPLIFIER·AUTOMATIC GAIN SCALINGPinoutSpecificationsPower Supply .............................................

product image

PGA102 Picture
See larger image
SeekIC No. : 004460021 Detail

PGA102: Features: `DIGITALLY PROGRAMMABLE GAIN: G = 1, 10, 100`LOW GAIN ERROR: 0.025% max`FAST SETTLING: 2.8s to 0.01%`16-PIN PLASTIC AND CERAMIC DIPApplication·DATA ACQUISITION AMPLIFIER·FIXED-GAIN AMPLIFI...

PGA102 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PGA102
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`DIGITALLY PROGRAMMABLE GAIN: G = 1, 10, 100
`LOW GAIN ERROR: 0.025% max
`FAST SETTLING: 2.8s to 0.01%
`16-PIN PLASTIC AND CERAMIC DIP


Application

·DATA ACQUISITION AMPLIFIER
·FIXED-GAIN AMPLIFIER
·AUTOMATIC GAIN SCALING


Pinout

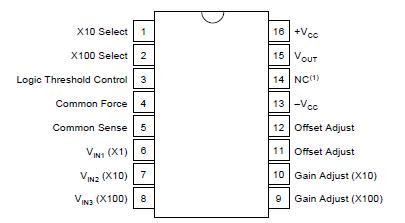

Connection Diagram


Specifications

Power Supply ..................................................................... ±18V
Input Voltage Range: Analog ............................................. ±VCC
Digital ..................................................... (VPIN 3 5.6V) to +VCC
Storage Temperature Range: G Package ....... ... 65to +150
P Package ......................................................... 55 to +125
Lead Temperature (soldering, 10s) .................................. +300
Output Short Circuit Duration ................. Continuous to Common
Junction Temperature: G Package .................................... +175
P Package ......................................................................... +110


Description

The PGA102 is a high speed, digitally programmablegain amplifier. CMOS/TTL-compatible inputs select gains of 1, 10 or 100V/V. Each gain has an independent input terminal, providing an input multiplexer function.

On-chip metal film gain-set resistors PGA102 are laser-trimmed to provide excellent gain accuracy. High speed input circuitry allows multiplexing of high speed signals.

The PGA102 is available in 16-pin plastic and ceramic DIP packages. Commercial, industrial and military temperature range models are available.
