PF08127B

Features: • All in one including output matching circuit• Simple external circuit• Simple power control• High gain 3stage amplifier : 0 dBm input Typ• Lead less thin & Small package : 8.0 × 10.0 mm Typ × 1.5 mm Max• High efficiency : 55% Typ at 35.0 dBm for ...

product image

PF08127B Picture
See larger image
SeekIC No. : 004459675 Detail

PF08127B: Features: • All in one including output matching circuit• Simple external circuit• Simple power control• High gain 3stage amplifier : 0 dBm input Typ• Lead less thin &a...

PF08127B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PF08127B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• All in one including output matching circuit
• Simple external circuit
• Simple power control
• High gain 3stage amplifier : 0 dBm input Typ
• Lead less thin & Small package : 8.0 × 10.0 mm Typ × 1.5 mm Max
• High efficiency : 55% Typ at 35.0 dBm for E-GSM
                            47% Typ at 32.5 dBm for DCS1800
                            47% Typ at 32.0 dBm for DCS1900


Application

• Triple band amplifier for
   E-GSM (880 MHz to 915 MHz), DCS1800/1900 (1710 MHz to 1785 MHz, 1850 MHz to 1910 MHz).
• For 3.5 V & GPRS Class12 operation compatible


Pinout

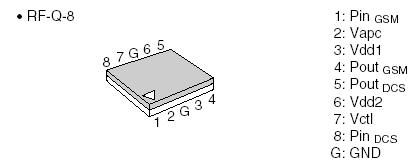

Connection Diagram


Specifications

Item Symbol Rating Unit Remark
Supply voltage Vdd 7.0 V at no-operation
5.0 V at operation (50 Ω load)
Supply current Idd GSM 3.5 A
Idd DCS 2 A
Vctl voltage Vctl 4 V
Vapc voltage Vapc 4 V
Input power Pin 10 dBm
Operating case temperature *2 Tc (op) −30 to +100
Storage temperature Tstg −40 to +100
Output power Pout GSM 5 W
Pout DCS 3 W
