Product Details

Description

Features:

` 3stage amplifier
` Small package: 0.2cc
` High efficiency: 45% Typ
` High speed switching: 0.9 sec

Application

For DCS 1800 class1 1710 to 1785 MHz.

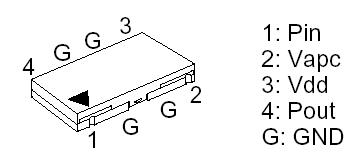

Pinout

Connection Diagram

Specifications

Item	Symbol	Rating	Unit
Supply voltage	V_DD	11	V
Supply current	I_DD	3	A
V_APC voltage	V_APC	6	V
Input power	P_in	20	mW
Operating case temperature	T_{c (op)}	30 to +100	°C
Storage temperature	T_stg	40 to +110	°C
Output power	P_out	3	w
