Product Details

Description

Features:

` Small package: 30 *10 * 5.9 mm
` High efficiency: 50% Typ
` Low power control current: 0.5 A Max

Application

VHF Band 150 to 174 MHz

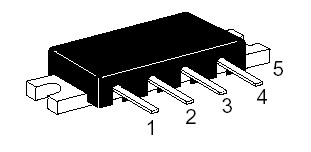

Pinout

Connection Diagram

Specifications

Item	Symbol	Rating	Unit
Supply voltage	V_DD	17	V
Supply current	I_DD	3	A
APC voltage	V_APC	7	V
Input power	P_in	100	mW
Operating case temperature	T_{c (op)}	30 to +100	°C
Storage temperature	T_stg	30 to +100	°C
