Features:

•Unidirectional ESD protection of one line
•Ultra low diode capacitance: C_d = 0.6 pF
•Max. peak pulse power: P_PP up to 200 W
•Low clamping voltage
•ESD protection > 23 kV
•IEC 61000-4-2; level 4 (ESD)
•IEC 61000-4-5; (surge)

Application

•10/100/1000 Ethernet
•FireWire
•Communication systems
•Local Area Network (LAN) equipment
•Computers and peripherals
•High-speed datalines

Pinout

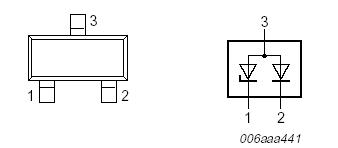

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Min	Max	Unit
P_PP	peak pulse power PESD3V3U1UT PESD5V0U1UT PESD12VU1UT PESD15VU1UT PESD24VU1UT	8/20 s	[1]
P_PP		8/20 s	- - - - -	80 80 200 200 200	W W W W W
I_PP	peak pulse current PESD3V3U1UT PESD5V0U1UT PESD12VU1UT PESD15VU1UT PESD24VU1UT	8/20 s	[1]
I_PP		8/20 s	- - - - -	5 5 5 5 3	A A A A A
T_j	junction temperature		-	150	°C
T_amb	ambient temperature		-65	+150	°C
T_stg	storage temperature		-65	+150	°C

[1] Non-repetitive current pulse 8/20 s exponential decay waveform according to IEC 61000-4-5.

Description

Ultra low capacitance ElectroStatic Discharge (ESD) protection diode in a SOT23 (TO-236AB) small SMD plastic package of PESDxU1UT designed to protect one high-speed data line from the damage caused by ESD and other transients.
