PESDxS2UT

Features: ` Uni-directional ESD protection of up to two lines` Max. peak pulse power: Ppp = 330 W at tp = 8/20 s` Low clamping voltage: V(CL)R = 20 V at Ipp = 18 A` Ultra-low reverse leakage current: IRM < 700 nA` ESD protection > 23 kV` IEC 61000-4-2; level 4 (ESD)` IEC 61000-4-5 (surge); I...

product image

PESDxS2UT Picture
See larger image
SeekIC No. : 004459578 Detail

PESDxS2UT: Features: ` Uni-directional ESD protection of up to two lines` Max. peak pulse power: Ppp = 330 W at tp = 8/20 s` Low clamping voltage: V(CL)R = 20 V at Ipp = 18 A` Ultra-low reverse leakage current...

PESDxS2UT Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PESDxS2UT
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Uni-directional ESD protection of up to two lines
` Max. peak pulse power: Ppp = 330 W at tp = 8/20 s
` Low clamping voltage: V(CL)R = 20 V at Ipp = 18 A
` Ultra-low reverse leakage current: IRM < 700 nA
` ESD protection > 23 kV
` IEC 61000-4-2; level 4 (ESD)
` IEC 61000-4-5 (surge); Ipp = 18 A at tp = 8/20 s.


Application

· Computers and peripherals
· Communication systems
· Audio and video equipment
· High speed data lines
· Parallel ports.


Pinout

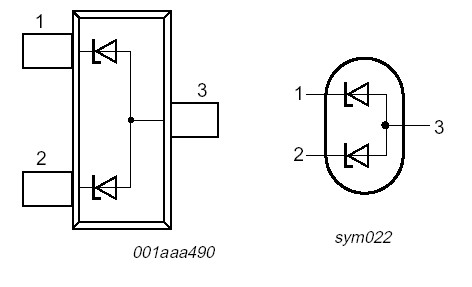

Connection Diagram


Specifications

Symbol Parameter
Conditions
Min
Max
Unit
Ppp peak pulse power
PESD3V3S2UAT
PESD5V0S2UAT
PESD12VS2UAT
PESD15VS2UAT
PESD24VS2UAT
8/20 ms pulse; notes 1 and 2
-
-
-
-
-
330
260
180
160
160
W
W
W
W
W
Ipp peak pulse current
PESD3V3S2UAT
PESD5V0S2UAT
PESD12VS2UAT
PESD15VS2UAT
PESD24VS2UAT
8/20 ms pulse; notes 1 and 2
-
-
-
-
-
18
15
5
5
3
A
A
A
A
A
Tj junction temperature
-
150
°C
Tamb operating ambient temperature
-65
+150
°C
Tstg storage temperature
-65
+150
°C
Notes
1. Non-repetitive current pulse 8/20 s exponential decay waveform; see Fig.2.
2. Measured across either pins 1 and 3 or pins 2 and 3.


Description

Uni-directional double ESD protection PESDxS2UT diodes in a SOT23 plastic package. Designed to protect up to two transmission or data lines from ElectroStatic Discharge (ESD) damage.
