Features:

` Uni-directional ESD protection of up to two lines
` Max. peak pulse power: P_pp = 150 W at t_p = 8/20 s
` Low clamping voltage: V_(CL)R = 20 V at I_pp = 15 A
` Low reverse leakage current: I_RM < 1 nA
` ESD protection > 30 kV
` IEC 61000-4-2; level 4 (ESD)
` IEC 61000-4-5 (surge); Ipp = 15 A at t_p = 8/20 s.

Application

· Computers and peripherals
· Communication systems
· Audio and video equipment
· High speed data lines
· Parallel ports.

Pinout

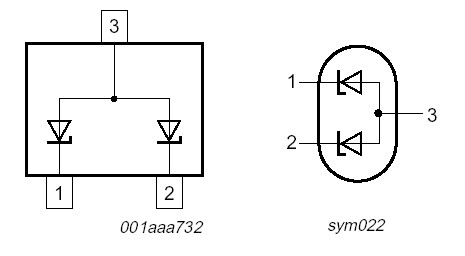

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Min	Max	Unit
P_pp	peak pulse power	8/20 ms pulse; notes 1 and 2	-	150	W
I_pp	peak pulse current PESD3V3S2UAT PESD5V0S2UAT PESD12VS2UAT PESD15VS2UAT PESD24VS2UAT	8/20 ms pulse; notes 1 and 2	- - - - -	15 15 5 5 3	A A A A A
T_j	junction temperature		-	150	°C
T_amb	operating ambient temperature		-65	+150	°C
T_stg	storage temperature		-65	+150	°C

Notes
1. Non-repetitive current pulse 8/20 ms exponential decaying waveform; see Fig.2.
2. Measured across either pins 1 and 3 or pins 2 and 3.

Description

Uni-directional double ESD protection diodes PESDxS2UQ in a SOT663 plastic package. Designed to protect up to two transmission or data lines from ElectroStatic Discharge (ESD) damage.
