Features:

` Unidirectional ESD protection of up to two lines
` Common-cathode configuration
` Max. peak pulse power: P_pp = 330 W at t_p = 8/20 ms
` Low clamping voltage: V_(CL)R = 20 V at I_pp = 18 A
` Ultra-low reverse leakage current: I_RM< 700 nA
` ESD protection > 30 kV
` IEC 61000-4-2; level 4 (ESD)
` IEC 61000-4-5 (surge); I_pp = 18 A at t_p = 8/20 s.

Application

· Computers and peripherals
· Communication systems
· Audio and video equipment
· Data lines
· CAN bus protection.

Pinout

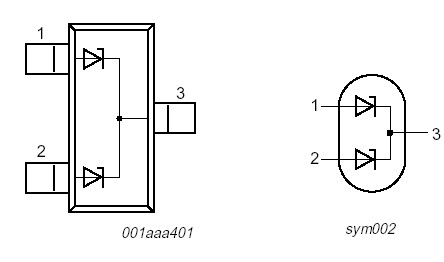

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Min	Max	Unit
P_pp	peak pulse power PESD3V3S2UAT PESD5V0S2UAT PESD12VS2UAT PESD15VS2UAT PESD24VS2UAT	8/20 ms pulse; notes 1 and 2	- - - - -	330 260 180 160 160	W W W W W
I_pp	peak pulse current PESD3V3S2UAT PESD5V0S2UAT PESD12VS2UAT PESD15VS2UAT PESD24VS2UAT	8/20 ms pulse; notes 1 and 2	- - - - -	18 15 5 5 3	A A A A A
T_j	junction temperature		-	150	°C
T_amb	operating ambient temperature		-65	+150	°C
T_stg	storage temperature		-65	+150	°C

Notes
1. Non-repetitive current pulse 8/20 ms exponential decay waveform; see Fig.2.
2. Measured across either pins 1 and 3 or pins 2 and 3.

Description

Unidirectional double ESD protection diodes in common cathode configuration in the SOT23 plastic package. PESDxS2UAT is designed to protect up to two transmission or data lines against damage from ElectroStatic Discharge (ESD) and other transients.
