Product Details

Description

Features:

•Unidirectional ESD protection of one line
•Max. peak pulse power: PPP = 330 W at tp = 8/20 s
•Low clamping voltage: VCL = 20 V at IPP = 18 A
•Ultra low leakage current: IRM < 700 nA
•ESD protection > 23 kV
•IEC 61000-4-2, level 4 (ESD)
•IEC 61000-4-5 (surge); IPP = 18 A at tp = 8/20 s.

Application

•Computers and peripherals
•Communication systems
•Audio and video equipment
•Data lines
•CAN bus protection.

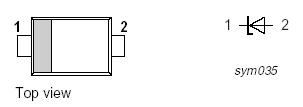

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Min	Max	Unit
P_PP	peak pulse power	8/20 s	[1]
P_PP	PESD3V3S1UB PESD5V0S1UB PESD12VS1UB PESD15VS1UB PESD24VS1UB		- - - - -	330 260 180 160 160	W W W W W
I_PP	peak pulse current	8/20 s	[1]
I_PP	PESD3V3S1UB PESD5V0S1UB PESD12VS1UB PESD15VS1UB PESD24VS1UB		- - - - -	18 15 5 5 3	A A A A A
T_j	junction temperature		-	150	°C
T_amb	operating ambient temperature		-65	+150	°C
T_stg	storage temperature		-65	+150	°C

[1] Non-repetitive current pulse 8/20 s exponentially decay waveform; see Figure 1.

Description

Unidirectional ESD protection diode in a SOD523 plastic package of PESDxS1UB designed to protect one transmission or data line from the damage caused by ESD (Electro Static Discharge) and other transients.
