Product Details

Description

Features:

` Uni-directional ESD protection of up to four lines
` Low diode capacitance
` Maximum peak pulse power: P_pp= 30 W at t_p = 8/20s
` Low clamping voltage: V_CL(R) = 12 V at I_pp= 3 A
` Ultra low leakage current: I_RM= 5 nA at V_RWM = 5 V
` ESD protection > 20 kV
` IEC 61000-4-2; level 4 (ESD).

Application

· Cellular handsets and accessories
· Portable electronics
· Computers and peripherals
· Communications systems
· Audio and video equipment.

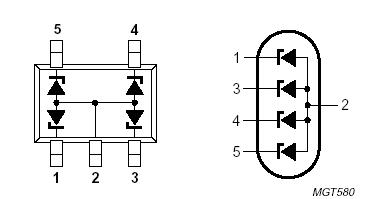

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Min	Max	Unit
Per diode
I_PP	peak pulse power PESD3V3L4UG PESD5V0L4UG	8/20 s notes 1 and 2	-	3 2.5	A A
P_PP	peak pulse current	8/20 s notes 1 and 2	-	30	W
I_FSM	junction temperature	t_p= 1 ms; square pulse	-	3.5	A
I_ZSM	operating ambient temperature PESD3V3L4UG PESD5V0L4UG	t_p = 1 ms; square pulse	- -	0.9 0.8	A A
P_tot	total power dissipation	T_amb = 25 °C; note 3	-	300	mW
P_ZSM	non-repetitive peak reverse power dissipation	t_p = 1 ms; square pulse; see Fig.4	-	6	W
T_stg	storage temperature		-65	+150	°C
T_j	junction temperature		-	150	°C
T_amb	operating ambient temperature		-65	+150	°C

Notes
1. Non-repetitive current pulse 8/20 s exponentially decaying waveform; see Fig.5.
2. Between any of pins 1, 3, 4 or 5 and pin 2.
3. Device mounted on standard printed-circuit board.

Description

ESD protection diode arrays PESDxL4UG designed to protect up to four transmissions or data lines from ElectroStatic Discharge (ESD) damage and other transients.
