PESDxL2UM

Features: · Uni-directional ESD protection of two lines or bi-directional ESD protection of one line· Reverse standoff voltage 3.3 and 5 V· Low diode capacitance· Ultra low leakage current· Leadless ultra small SOT883 surface mount package (1×0.6×0.5 mm)· Board space 1.17 mm2 (approx. 10% of SOT23...

product image

PESDxL2UM Picture
See larger image
SeekIC No. : 004459572 Detail

PESDxL2UM: Features: · Uni-directional ESD protection of two lines or bi-directional ESD protection of one line· Reverse standoff voltage 3.3 and 5 V· Low diode capacitance· Ultra low leakage current· Leadless...

PESDxL2UM Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PESDxL2UM
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Uni-directional ESD protection of two lines or bi-directional ESD protection of one line
· Reverse standoff voltage 3.3 and 5 V
· Low diode capacitance
· Ultra low leakage current
· Leadless ultra small SOT883 surface mount package (1×0.6×0.5 mm)
· Board space 1.17 mm2 (approx. 10% of SOT23)
· ESD protection >15 kV
· IEC 61000-4-2; level 4 (ESD); 15 kV (air) or 8 kV (contact).


Application

· Cellular handsets and accessories
· Portable electronics
· Computers and peripherals
· Communication systems
· Audio and video equipment.

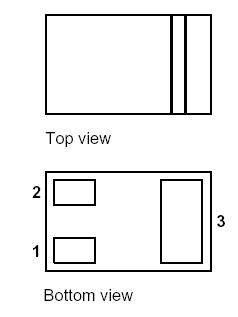

Pinout

Connection Diagram


Specifications

Symbol Parameter
Conditions
Min
Max
Unit
Ipp peak pulse current
PESD3V3L2UM
PESD5V0L2UM
8/20 s pulse notes 1, 2 and 3
-
-
3
2.5
W
Ppp peak pulse power
8/20 s pulse notes 1, 2 and 3
-
30
W
IFSM non-repetitive peak forward current
tp = 1 ms; square pulse
-
3.5
A
IZSM non-repetitive peak reverse current
PESD3V3L2UM
PESD5V0L2UM
tp = 1 ms; square pulse
-
-
0.9
0.8
A
A
Ptot total power dissipation Tamb = 25 °C; note 4 - 250 mW
PZSM non-repetitive peak reverse power
dissipation		 tp = 1 ms; square pulse; see Fig.4 -

6

W

Tstg storage temperature   -65 +150 °C
Tj junction temperature   - 150 °C
ESD electrostatic discharge
IEC 61000-4-2 (contact discharge)
HBM MIL-Std 883
15
10
-
-
kV
kV
Notes
1. Non-repetitive current pulse 8/20 ms exponential decay waveform; see Fig.5.
2. Pins 1 and 3 or 2 and 3.
3. Pins 1 and 2.
4. Device mounted on standard printed-circuit board.


Description

Low capacitance ESD protection diode in a three pad SOT883 leadless ultra small plastic package of PESDxL2UM designed to protect up to two transmission or data lines from ElectroStatic Discharge (ESD) damage.
