PESD5V2S18U

Features: ` Uni-directional ESD protection of up to 18 lines` Maximum peak reverse power: PPP = 100 W at tp = 8/20 s` Low clamping voltage: VCL = 12 V max. at IZSM = 10 A` Low leakage current: IR = 100 nA typ. at VRWM = 5.2 V` IEC 61000-4-2, level 4 (ESD); 15 kV (air) and 8 kV (contact).Applicatio...

product image

PESD5V2S18U Picture
See larger image
SeekIC No. : 004459568 Detail

PESD5V2S18U: Features: ` Uni-directional ESD protection of up to 18 lines` Maximum peak reverse power: PPP = 100 W at tp = 8/20 s` Low clamping voltage: VCL = 12 V max. at IZSM = 10 A` Low leakage current: IR = ...

PESD5V2S18U Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PESD5V2S18U
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Uni-directional ESD protection of up to 18 lines
` Maximum peak reverse power: PPP = 100 W at tp = 8/20 s
` Low clamping voltage: VCL = 12 V max. at IZSM = 10 A
` Low leakage current: IR = 100 nA typ. at VRWM = 5.2 V
` IEC 61000-4-2, level 4 (ESD); 15 kV (air) and 8 kV (contact).


Application

· Printer parallel ports
· Computers and peripherals
· Communication systems.

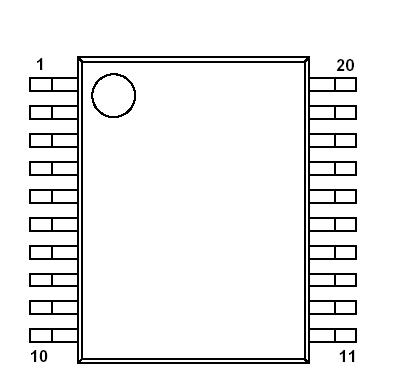

Pinout

Connection Diagram


Specifications

Symbol Parameter
Conditions
Min
Max
Unit
Ipp non-repetitive peak reverse current
tp = 8/20 s
-
10
A
Ppp non-repetitive peak reverse power
dissipation
tp = 8/20 s
-
100
W
Tstg storage temperature   -65 +150 °C
Tj junction temperature

-

 +150 °C
  electrostatic discharge voltage
IEC 61000-4-2 (contact discharge)
HBM MIL-Std 883
30
10
-
-
kV
kV



Description

Monolithic ESD protection PESD5V2S18U designed to protect up to 18 transmission or data lines from the damage caused by electrostatic discharge (ESD) and surge pulses.
