PESD5V0S2BT

Features: ` Bi-directional ESD protection of 2 lines` Low diode capacitance` Max. peak pulse power: Ppp = 130 W at tp = 8/20 s` Low clamping voltage: VCL(R) = 14 V at Ipp = 12 A` Ultra low leakage current: IRM = 5 nA at VRWM = 5 V` ESD protection > 30 kV` IEC 61000-4-2; level 4 (ESD)` IEC-61000...

product image

PESD5V0S2BT Picture
See larger image
SeekIC No. : 004459567 Detail

PESD5V0S2BT: Features: ` Bi-directional ESD protection of 2 lines` Low diode capacitance` Max. peak pulse power: Ppp = 130 W at tp = 8/20 s` Low clamping voltage: VCL(R) = 14 V at Ipp = 12 A` Ultra low leakage c...

PESD5V0S2BT Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PESD5V0S2BT
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Bi-directional ESD protection of 2 lines
` Low diode capacitance
` Max. peak pulse power: Ppp = 130 W at tp = 8/20 s
` Low clamping voltage: VCL(R) = 14 V at Ipp = 12 A
` Ultra low leakage current: IRM = 5 nA at VRWM = 5 V
` ESD protection > 30 kV
` IEC 61000-4-2; level 4 (ESD)
` IEC-61000-4-5 (surge); Ipp = 12 A at tp = 8/20 s.


Application

·Cellular handsets and accessories
·Portable electronics
·Computers and peripherals
·Communication systems
·Audio and video equipment.


Pinout

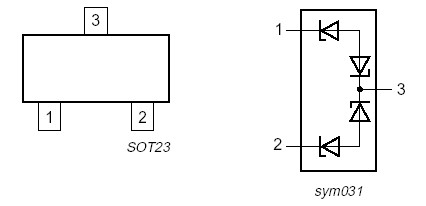

Connection Diagram


Specifications

Symbol Parameter
Conditions
Min
Max
Unit
Ppp peak pulse power
8/20 spulse
[1] [2] -
30
W
Ipp peak pulse current
8/20 spulse
[1] [2] -
12
A
Tj junction temperature
-
150
°C
Tamb operating ambient
temperature
-65
+150
°C
Tstg storage temperature
-65
+150
°C
[1] Non-repetitive current pulse 8/20 s exponentially decaying waveform according to IEC61000-4-5; see Figure 1.
[2] Measured from pin 1 to 3 or 2 to 3.


Description

Low capacitance bi-directional double ESD protection diode PESD5V0S2BT in the small SOT23 plastic package designed to protect 2 data lines from the damage caused by Electro Static Discharge (ESD) and other transients.
