PESD5V0L7BAS Selling Leads, Price trend, PESD5V0L7BAS DataSheet download, circuit diagram from SeekIC.com

Features: • ESD protection of up to seven lines•Low diode capacitance•Max. peak pulse power: Ppp = 35 W•Low clamping voltage: V(CL)R = 17 V•Ultra low leakage current: IRM = 3 nA•ESD protection of up to 10 kV•IEC 61000-4-2, level 4 (ESD)•IEC 61000-4-5...

See larger image

SeekIC No. : 004459562 Detail

PESD5V0L7BAS: Features: • ESD protection of up to seven lines•Low diode capacitance•Max. peak pulse power: Ppp = 35 W•Low clamping voltage: V(CL)R = 17 V•Ultra low leakage current: I...

PESD5V0L7BAS Data Sheet

Get Latest Price

Part Number:: PESD5V0L7BAS
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Description

Features:

• ESD protection of up to seven lines
•Low diode capacitance
•Max. peak pulse power: P_pp = 35 W
•Low clamping voltage: V_(CL)R = 17 V
•Ultra low leakage current: I_RM = 3 nA
•ESD protection of up to 10 kV
•IEC 61000-4-2, level 4 (ESD)
•IEC 61000-4-5 (surge); I_pp = 2.5 A.

Application

•Computers and peripherals
•Communication systems
•Audio and video equipment
•High speed data lines
•Parallel ports.

Pinout

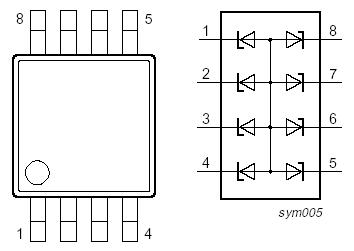

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Min	Max	Unit
Per diode
P_PP	peak pulse power	8/20 s pulse;	[1]-	35	W
I_PP	peak pulse current	8/20 s pulse;	[1]-	2.5	A
T_j	junction temperature		-	150	°C
T_amb	operating ambient temperature		-65	+150	°C
T_stg	storage temperature		-65	+150	°C

[1] Non-repetitive current pulse 8/20 ms exponentially decaying waveform according to IEC61000-4-5; see Figure 1.

Description

Low capacitance 7-fold bidirectional ESD protection diode arrays in small plastic packages of PESD5V0L7BAS designed for the protection of up to seven transmission or data lines from damage caused by ElectroStatic Discharge (ESD) and other transients.
