Product Details

Description



Features:

` Uni-directional ESD protection of up to five lines
` Bi-directional ESD protection of up to four lines
` Low diode capacitance
` Maximum peak pulse power: Ppp = 25 W at tp = 8/20 s
` Low clamping voltage: V CL(R) = 12 V at Ipp = 2.5 A
` Ultra low leakage current: IRM = 8 nA at VRWM = 5 V
` ESD protection > 20 kV
` IEC 61000-4-2; level 4 (ESD)
` IEC 61000-4-5 (surge); Ipp = 2.5 A at Tp = 8/20 s.


Application

· Cellular handsets and accessories
· Portable electronics
· Computers and peripherals
· Communications systems
· Audio and video equipment.

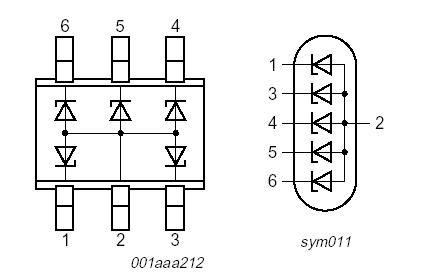

Pinout

Connection Diagram


Specifications

Symbol

Parameter

Conditions

Min

Max

Unit

Per diode
PPP peak pulse power 8/20 s pulse; notes 1 and 2
-

25

W

IPP peak pulse current 8/20 s pulse; notes 1 and 2

-

2.5

A

Tj junction temperature

-

150

°C

Tamb operating ambient temperature

-65

+150

°C

Tstg storage temperature

-65

+150

°C

Notes
1. Non-repetitive current pulse 8/20 s exponentially decaying waveform; see Fig.2.
2. Measured from any of pins 1, 3, 4, 5 or 6 to pin 2.
