PEMH4

Features: · 300 mW total power dissipation· Very small 1.6 mm×1.2 mm ×0.55 mm ultra thin package· Excellent coplanarity due to straight leads· Reduces number of components as replacement of two SC-75/SC-89 packaged transistors· Reduces required board space· Reduces pick and place costs.Application...

product image

PEMH4 Picture
See larger image
SeekIC No. : 004459535 Detail

PEMH4: Features: · 300 mW total power dissipation· Very small 1.6 mm×1.2 mm ×0.55 mm ultra thin package· Excellent coplanarity due to straight leads· Reduces number of components as replacement of two SC-7...

PEMH4 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PEMH4
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 300 mW total power dissipation
· Very small 1.6 mm×1.2 mm ×0.55 mm ultra thin package
· Excellent coplanarity due to straight leads
· Reduces number of components as replacement of two SC-75/SC-89 packaged transistors
· Reduces required board space
· Reduces pick and place costs.


Application

· General purpose switching and amplification
· Inverter and interface circuits
· Circuit driver.


Pinout

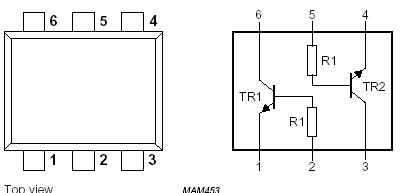

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
Per transistor
VCBO collector-base voltage
open emitter
-
50
V
VCEO collector-emitter voltage
open base
-
50
V
VEBO emitter-base voltage
open collector
-
5
V
IC collector current (DC)
-
100
mA
ICM peak collector current
-
100
mA
Ptot total power dissipation
Tamb 25 °C; note 1
-
200
mW
Tstg storage temperature
-65
+150
°C
Tj junction temperature
-
150
°C
Tamb operating ambient temperature
-65
+150
°C
Per device
Ptot total power dissipation
Tamb 25 °C; note 1
-
300
mW

Note
1. Transistor mounted on an FR4 printed-circuit board.


Description

NPN resistor-equipped double transistor PEMH4 in a SOT666 plastic package.
