Product Details

Description



Features:

· 300 mW total power dissipation
· Very small 1.6 mm×1.2 mm × 0.55 mm ultra thin package
· Excellent coplanarity due to straight leads
· Reduces number of components as replacement of two SC-75/SC-89 packaged transistors
· Reduces required board space
· Reduces pick and place costs.


Application

· General purpose switching and amplification
· Inverter and interface circuits
· Circuit driver.

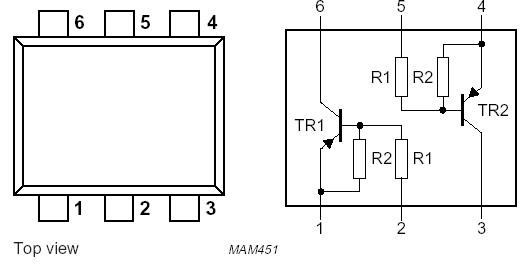

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
Per transistor; for the PNP transistor with negative polarity
VCBO collector-base voltage
open emitter
-
-50
V
VCEO collector-emitter voltage
open base
-
-40
V
VEBO emitter-base voltage
open collector
-
-5
V
VI input voltage
positive
negative
-
-
+10
-40
V
V
IO collector current (DC)
-
-100
mA
ICM peak collector current
-
-200
mA
IBM peak base current
-
-200
mA
Ptot total power dissipation
Tamb 25 °C;
note 1
-
200
mW
Tstg storage temperature
-65
+150
°C
Tj junction temperature
-
150
°C
Tamb operating ambient temperature
-65
+150
°C
Per device
Ptot total power dissipation
Tamb25 °C;
note 1
-
300
mW



Description

PNP resistor-equipped double transistor PEMB2 in a SOT666 plastic package.
