Position: Home  > All Categories> Integrated Circuits (ICs) > PEMB10

PEMB10

Features: · 300 mW total power dissipation· Very small 1.6 mm× 1.2 mm ×0.55 mm ultra thin package· Excellent coplanarity due to straight leads· Reduces number of components as replacement of two SC-75/SC-89 packaged transistors· Reduces required board space· Reduces pick and place costs.Applicatio...

product image

PEMB10 Picture
See larger image
SeekIC No. : 004459511 Detail

PEMB10: Features: · 300 mW total power dissipation· Very small 1.6 mm× 1.2 mm ×0.55 mm ultra thin package· Excellent coplanarity due to straight leads· Reduces number of components as replacement of two SC-...

PEMB10 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PEMB10
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 300 mW total power dissipation
· Very small 1.6 mm × 1.2 mm ×0.55 mm ultra thin package
· Excellent coplanarity due to straight leads
· Reduces number of components as replacement of two SC-75/SC-89 packaged transistors
· Reduces required board space
· Reduces pick and place costs.


Application

· General purpose switching and amplification
· Inverter and interface circuits
· Circuit driver.


Pinout

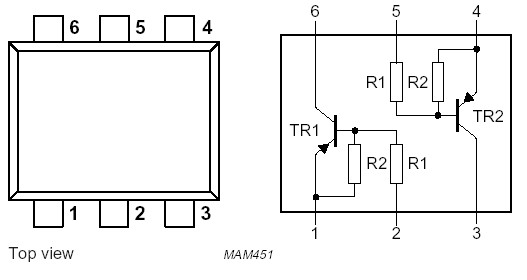

Connection Diagram


Specifications

SYMBOL PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
Per transistor; for the PNP transistor with negative polarity
VCBO collector-base voltage
open emitter
-
-50
V
VCEO collector-emitter voltage
open base
-
-40
V
VEBO emitter-base voltage
open collector
-
-5
V
VI input voltage
positive
negative
-
-
+12
-5
V
V
IO collector current (DC)
-
-100
mA
ICM peak collector current
-
-200
mA
IBM peak base current
-
-200
mA
Ptot total power dissipation
Tamb 25 °C;
note 1
-
200
mW
Tstg storage temperature
-65
+150
°C
Tj junction temperature
-
150
°C
Tamb operating ambient temperature
-65
+150
°C
Per device
Ptot total power dissipation
Tamb25 °C;
note 1
-
300
mW
Note
1. Transistor mounted on an FR4 printed-circuit board.


Description

PNP resistor-equipped double transistor PEMB10 in a SOT666 plastic package.


Customers Who Bought This Item Also Bought

Margin,quality,low-cost products with low minimum orders. Secure your online payments with SeekIC Buyer Protection.
You may also be interested in :
Cables, Wires - Management
NM-SF50+
CCK26.5-MM-190-30
Batteries, Chargers, Holders
ICR18650-28A
ICR18650-26F/h
Capacitors
GRM188R71H103KA01D
GRM21BR71H104KA01L
RF and RFID
X3C26P1-30S
1P620S
Isolators
HCPL062N
HCPL316J
Computers, Office - Components, Accessories
DS-4008HCI
LB104V03(A1)
View more
