Product Details

Description

Features:

·Support of LAPD protocol
·Different types of operating modes for increased flexibility
·FIFO buffer (2 x 64 bytes) for efficient transfer of data packets
·Serial interfaces: IOM®-1, SLD, SSI IOM®-2
·General purpose HDLC communication interface
·Implementation of IOM-1/IOM-2 MONITOR and C/I channel protocol to control layer 1 and peripheral devices
·D-channel access with contention resolution mechanism
·mP access to B channel and intercommunication channels
·B-channels switching
    PEB 2070
    PEF 2070
·Watchdog timer
·Test loops
·Advanced CMOS technology
·Low power consumption:
    active    : 17 mW (IOM-2)
                 : 8 mW (IOM-1)
    standby : 3 mW

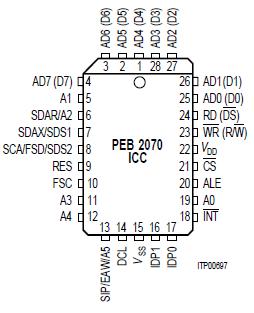

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Limit Values	Unit
Voltage on any pin with respect to ground	V_S	0.4 to V_DD+0.4	V
Ambient temperature under bias PEB 2070 PEF 2070	T_AT_A	0 to 70 -40 to 85
Storage temperature	Tstg	65 to 125

Note: Stresses above those listed here may cause permanent damage to the device.Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
