PEEL16CV8

The PEEL^TM 16CV8 is a Programmable Electrically Erasable Logic (PEEL) device providing an attractive alternative to ordinary PLDs. The PEEL^TM16CV8 offers the performance, flexibility, ease of design and production practicality needed by logic designers today.

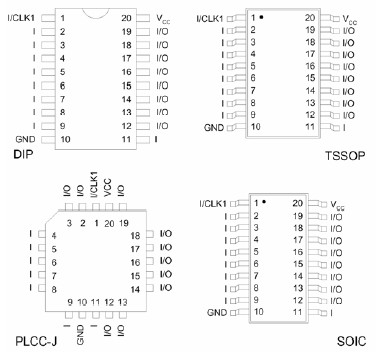

The PEEL^TM 16CV8 is available in 20-pin DIP, PLCC, SOIC and TSSOP packages (see Figure 1) with 25ns speed and power consumption as low as 37mA. EE-Reprogrammability provides the convenience of instant reprogramming for development and reusable production inven- tory minimizing the impact of programming changes or errors. EE- Reprogrammability PEEL^TM 16CV8 also improves factory testability, thus assuring the highest quality possible.

The PEEL^TM 16CV8 architecture allows it to replace over standard 20- pin PLDs (PAL, GAL, EPLD etc.). See Figure 2. Anachip's PEEL^TM 16CV8 can be programmed with existing 16CV8 JEDEC file. Some pro- grammers also allow the  PEEL^TM 16CV8 to be programmed directly from PLD 16L8, 16R4, 16R6 and 16R8 JEDEC files. Additional develop- ment and programming support for the PEELTM16CV8 is provided by popular third-party programmers and development software. Anachip also offers free WinPLACE development software.
