PEB3086

PinoutSpecifications Parameter Symbol Limit Values Unit min. max Ambient temperature under bias TA 0 +70 Storage temperature TSTG -55 150 Input/output voltage on any pinwith respect to ground VS -0.3 5.25 V Maximum voltage on any pinwith respect to ground Vma...

product image

PEB3086 Picture
SeekIC No. : 004458030 Detail

PEB3086: PinoutSpecifications Parameter Symbol Limit Values Unit min. max Ambient temperature under bias TA 0 +70 Storage temperature TSTG -55 150 Input/output voltage on any p...

floor Price/Ceiling Price

Part Number:
PEB3086
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

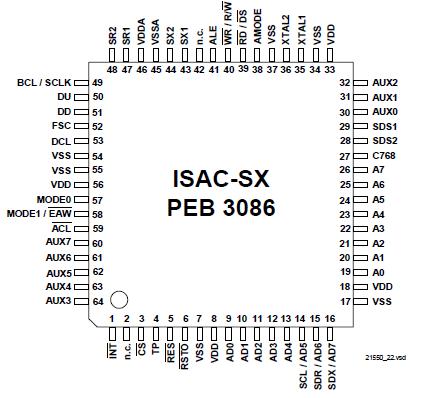

  Connection Diagram


Specifications

Parameter Symbol Limit Values Unit
min. max
Ambient temperature under bias TA 0 +70
Storage temperature TSTG -55 150
Input/output voltage on any pin
with respect to ground
VS -0.3 5.25 V
Maximum voltage on any pin
with respect to ground
Vmax   5.5 V
Note: Stresses above those listed here may cause permanent damage to the device.
          Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
          Maximum ratings are absolute ratings; exceeding only one of these values may  cause irreversible damage to the integrated circuit.
          The supply voltage must show a monotonic rise.



Description

The ISDN Subscriber Access Controller ISAC-SX PEB3086 integrates a D-channel HDLC controller and a four wire S/T interface used to link voice/data terminals to the ISDN. It is based on the ISAC-S PEB 2086, and provides enhanced features and functionality. It includes the S-transceiver (Layer 1), an HDLC controller PEB3086 for the D-channel and one B-channel protocol controller (HDLC or transparent) with reduced features dedicated for firmware download via the B-channel.

The system integration of PEB3086 is simplified by several configurations of the parallel microcontroller interface selected via pin strapping. They include multiplexed and demultiplexed interface selection as well as the optional indirect register PEB3086 access mechanism which reduces the number of necessary registers in the address space to 2 locations. The ISAC-SX also provides a serial control interface (SCI).

The FIFO PEB3086 size of the cyclic D-channel buffer is 64 bytes per direction with programmable block size (threshold). Besides TE mode the S-transceiver supports other terminal relevant operation modes PEB3086 like line termination subscriber side (LT-S), line termination trunk side (LT-T) and NT applications (NT, Intelligent NT mode).

An auxiliary I/O port of PEB3086 has been added with interrupt capabilities on two input lines. These programmable I/O lines of PEB3086 may be used to connect peripheral components to the ISAC-SX which need software control or have to forward status information to the host.

Three programmable LED outputs of PEB3086 can be used to indicate certain status information, one of them is capable to indicate the activation status of the S-interface automatically. The ISAC-SX PEB3086 is produced in advanced CMOS technology.
