Features:

• Single chip CODEC and FILTER to handle four COor PABX-channels
• Specification according to relevant CCITT, EIA and LSSGR recommendations
• Digital signal processing technique
• Programmable interface optimized to current feed SLICs and transformer solutions
• Four pin serial IOM-2 Interface
• Single power supply 5 V
• Advanced low power 1 mm analog CMOS technology
• Standard 64 pin P-MQFP-64 package
• High performance Analog to Digital Conversion
• High performance Digital to Analog Conversion
• Programmable digital filters to adapt the transmission behavior especially for
AC impedance matching
transhybrid balancing
frequency response
gain
• Advanced test capabilities
all digital pins can be tested within a boundary scan scheme (IEEE 1149.1)
five digital loops
four analog loops
two programmable tone generators per channel
• Comprehensive Development Platform available
software for automatic filter coefficient calculation - QSICOS
Hardware development board - STUT 2465

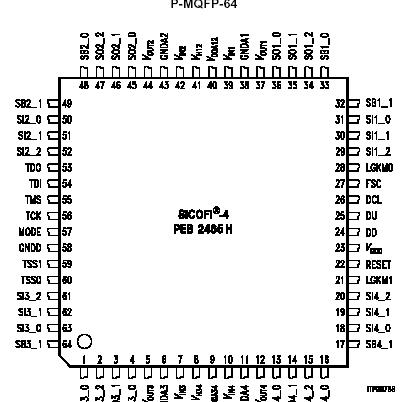

Pinout

Connection Diagram


Specifications

Parameter Symbol Limit Values
 Unit Test Condition
min. max.
VDD referred to GNDD - 0.3 7.0 V
GNDA to GNDD - 0.6 0.6 V
Analog input and output voltage
referred to VDD = 5 V;
referred to GNDA = 0 V		 - 5.3
- 0.3		 0.3
5.3
 V
V
All digital input voltages
referred to GNDD = 0 V;
(VDD = 5 V)
referred to VDD = 5 V;
(GNDD = 0 V)		 - 0.3
- 5.3		 5.3
0.3		 V
V
DC input and output current at
any input or output pin (free from
latch-up)		 10 mA
Storage temperature
Ambient temperature under bias		 TSTG
TA		 - 60
- 10		 125
80		 °C
°C
Power dissipation (package)

PD

 1 W
Note: Maximum ratings are absolute ratings; exceeding only one of these values may
cause irreversible damage to the integrated circuit.
The listed characteristics are ensured over the operating range of the integrated
circuit. Typical characteristics specify mean values expected over the production
spread. If not otherwise specified, typical characteristics apply atTA = 25° C and
the given supply voltage.


Description

The four Channel CODEC Filter PEB 2465 SICOFI-4 is the logic continuation of a well-established family of SIEMENS codec-filter-ICs.

The SICOFI-4 PEB 2465 is a fully integrated PCM CODEC and FILTER fabricated in low power 1m CMOS technology for applications in digital communication systems. Based on an advanced digital filter concept, the PEB 2465 provides excellent transmission performance and high flexibility. The new filter concept (second generation) lends to a maximum of independence between the different filter blocks. Each filter block PEB 2465 can be seen like an one to one representative of the corresponding network element.

Only very few external components of PEB 2465 are needed, to complete the functionality of the SICOFI-4. The internal level accuracy is based on a very accurate bandgap reference. The frequency behavior is mainly determined by digital filters, which do not have any fluctuations. As a result of the new ADC - and DAC - concepts linearity is only limited by second order parasitic effects. Although the PEB 2465 works with only one single 5 V supply there is a very good dynamic range available.
