PEB2080

Features: ·Full duplex 2B + D S/T-interface transceiver according to CCITT I.430·Conversion of the frame structure between the S/T and IOM® interfaces·D-channel access control·Activation and deactivation procedures according to CCITT I.430·Built-in wake-up unit for activation from power-down s...

product image

PEB2080 Picture
See larger image
SeekIC No. : 004457992 Detail

PEB2080: Features: ·Full duplex 2B + D S/T-interface transceiver according to CCITT I.430·Conversion of the frame structure between the S/T and IOM® interfaces·D-channel access control·Activation and dea...

PEB2080 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PEB2080
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Full duplex 2B + D S/T-interface transceiver according to CCITT I.430
·Conversion of the frame structure between the S/T and IOM® interfaces
·D-channel access control
·Activation and deactivation procedures according to CCITT I.430
·Built-in wake-up unit for activation from power-down state
·Adaptively switched receive thresholds
·Control via IOM interface
·Several operating modes
·Receive timing recovery according to selected operating mode
·Frame alignment with absorption of phase wander in trunk line applications
·Switching of test loops
·Advanced CMOS technology
·Low power consumption:
    PEB 2080: standby less than 5 mW
                     active max. 65 mW
    PEF 2080: standby less than 6.5 mW
                     active max. 70 mW

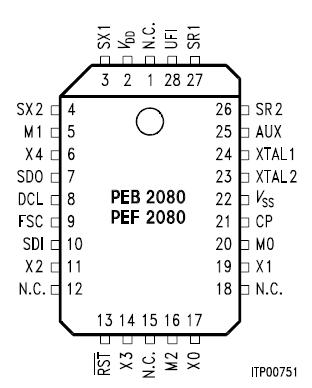

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
Voltage on any pin with respect to ground
VS
0.4 VDDto +0.4
V
Ambient temperature under bias PEB 2080
PEF 2080
TA
TA
0 to 70
-40 to 85

Storage temperature
Tstg
65 to 125
Power dissipation
PD
1
W
Stresses above those listed here may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may effect device reliability.
