PEB2047

Features: ·Non-blocking time/space switch for 2048-, 4096-, 8192- or 16 384-kbit/s PCM systems·Different modes programmable for input and output separately·Configurable for a 4096-kHz, 8192-kHz or 16 384-kHz device clock·Switching of up to 1024 incoming PCM channels to up to 1024 outgoing PCM chan...

product image

PEB2047 Picture
See larger image
SeekIC No. : 004457974 Detail

PEB2047: Features: ·Non-blocking time/space switch for 2048-, 4096-, 8192- or 16 384-kbit/s PCM systems·Different modes programmable for input and output separately·Configurable for a 4096-kHz, 8192-kHz or 1...

PEB2047 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PEB2047
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Non-blocking time/space switch for 2048-, 4096-, 8192- or 16 384-kbit/s PCM systems
·Different modes programmable for input and output separately
·Configurable for a 4096-kHz, 8192-kHz or 16 384-kHz device clock
·Switching of up to 1024 incoming PCM channels to up to 1024 outgoing PCM channels
·16 input and 8 output PCM lines
·Tristate function for further expansion and tandem operation
·mP read-access to PCM data
·Programmable clock shift with half clock step resolution for input and output
·Individual line delay measurement and clock shift mechanism for 8 PCM inputs
·Built-in selftest
·8-bit Motorola or Intel type mP interface
·Constant or minimal channel-delay programmable on a per time-slot basis
·In-operation adjustment of bit-sampling without bit errors
·Low power consumption
·Single 5 V power supply

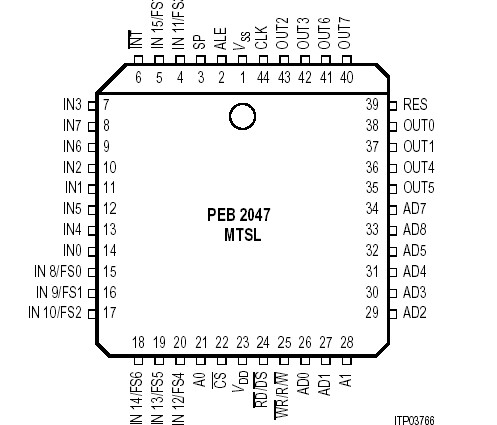

Pinout

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit
Ambient temperature under bias
Storage temperature
Voltage at any pin with respect to ground
Maximum voltage on any pin
TA
Tstg
VS
Vmax
0 to 70
65 to 125
0.4 to VDD + 0.4
7
°C
°C
V
V
Note: Stresses above those listed here may cause permanent damage to the device. Exposure to absolute maximum ratings conditions for extended periods may affect device reliability.
