PE94302

Features:

• Attenuation: 0.5 dB steps to 31.5 dB
• Flexible parallel and serial programming interfaces
• Unique power-up state selection
• Positive CMOS control logic
• High attenuation accuracy and linearity
over temperature and frequency
• Very low power consumption
• Single-supply operation
• 50 impedance

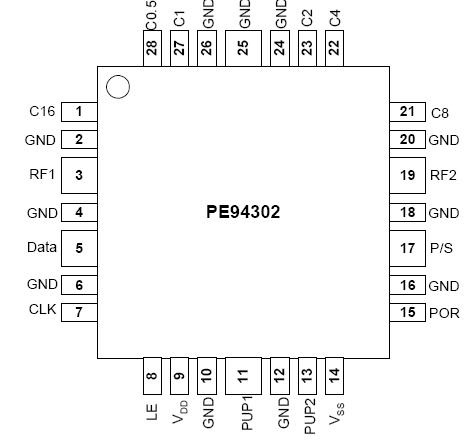

Pinout






Specifications

Symbol	Parameter/Conditions	Min	Max	Units
VDD	Supply voltage	-0.3	4.0	V
VI	Voltage on any input	-0.3	VDD+	V
TST	Storage temperature range	-65	150	°C
VESD	ESD voltage (Human Body Model)		500	V
PIN	Maximum input power		24	dBm

Description

The PE94302 is a high linearity, 6-bit RF Digital Step Attenuator DSA covering a 31.5 dB attenuation range in 0.5 dB steps. This 50-ohm RF DSA provides both parallel and serial CMOS control interface operates on a single 3-volt supply and maintains high attenuation accuracy over frequency and temperature. It also has a unique control interface that allows the user to select an initial attenuation state at power-up. The PE94302 also exhibits very low insertion loss, low power consumption, and is Rad-Hard and ideal for spaceapplications. It is offered in a 28-lead CQFP package.
