PE9312

Features: • DC to 1500 MHz operation• Fixed divide ratio of 4• Low-power operation: 6.5 mA typical @ 3 V• Ultra small package: 8-lead Ceramic SOIC• Guaranteed 100 Krads(Si) Total Dose Performance• Superior Single Event Upset ImmunityPinoutSpecifications S...

product image

PE9312 Picture
See larger image
SeekIC No. : 004457936 Detail

PE9312: Features: • DC to 1500 MHz operation• Fixed divide ratio of 4• Low-power operation: 6.5 mA typical @ 3 V• Ultra small package: 8-lead Ceramic SOIC• Guaranteed 100 Krads...

PE9312 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PE9312
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• DC to 1500 MHz operation
• Fixed divide ratio of 4
• Low-power operation: 6.5 mA typical @ 3 V
• Ultra small package: 8-lead Ceramic SOIC
• Guaranteed 100 Krads(Si) Total Dose Performance
• Superior Single Event Upset Immunity

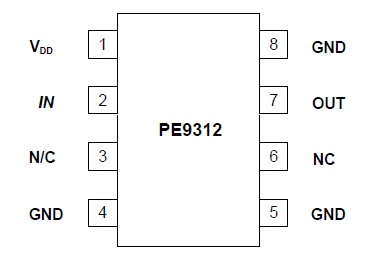

Pinout

Connection Diagram




Specifications

Symbol
Parameter/Conditions
Min
Max
Units
VDD
 Supply voltage
4.0
V
PIN
 Input Power
15
dBm
VI
 Voltage on any input
-0.3
VDD
+ 0.3
V
TST
 Storage temperature range
-65
150
°C
TOP
 Operating temperature range
-40
85
°C
VESD
 ESD voltage (Human Body
Model, MIL-STD 883)		 1000
V
<




Description

The PE9312 is a high-performance static UltraCMOS™ prescaler with a fixed divide ratio of 4. Its operating frequency range is DC to 1500 MHz. The PE9312 operates on a nominal 3 V supply and draws only 6.5 mA. It is packaged in a small 8-lead ceramic SOIC and is ideal for frequency scaling and clock generation solutions.

The PE9312 is manufactured in Peregrine's patented Ultra- Thin Silicon (UTSi®) CMOS process, offering the performance of GaAs with the economy and integration of conventional CMOS.
